Front Pull Slide Series

0100-F/P-STD-29al

Regular price$695.00
/

  • In stock, ready to ship
  • Inventory on the way

 Front Pull Fridge Slide

1/8" Aluminum Slides in Four different sizes

See below for dimensions:

Our Extreme Duty Flat Slides, uses top of the line, locking slide tracks. These are tough, rugged cargo slides.

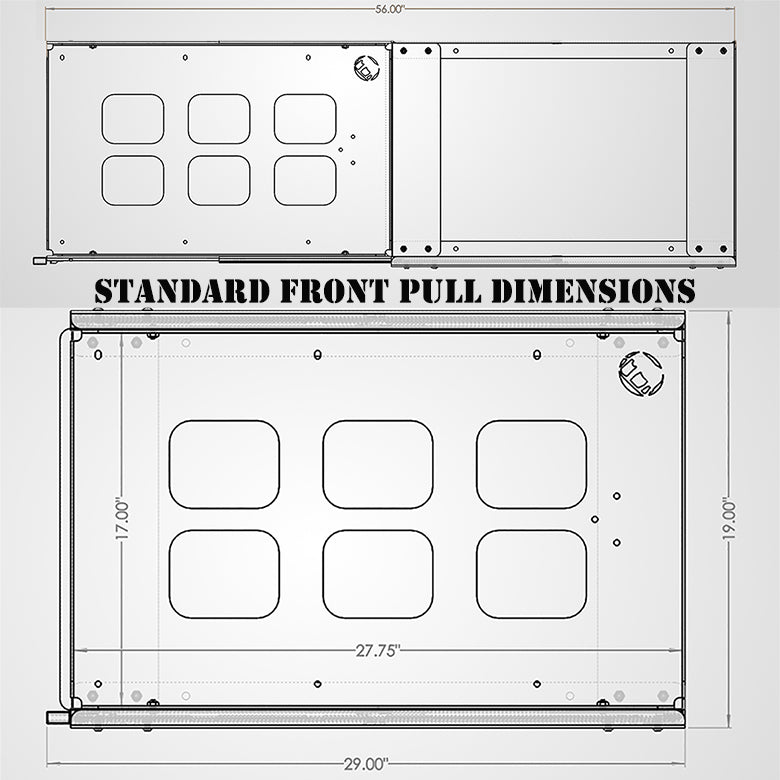

Standare Front Pull Slide:
     Outside dimensions:  18.75" wide x 29"  (Foot print)
     Inside pan dimensions:  17" wide x 28"
     Slide weight: 43 pounds.
     Fridge size:  35L to 52L

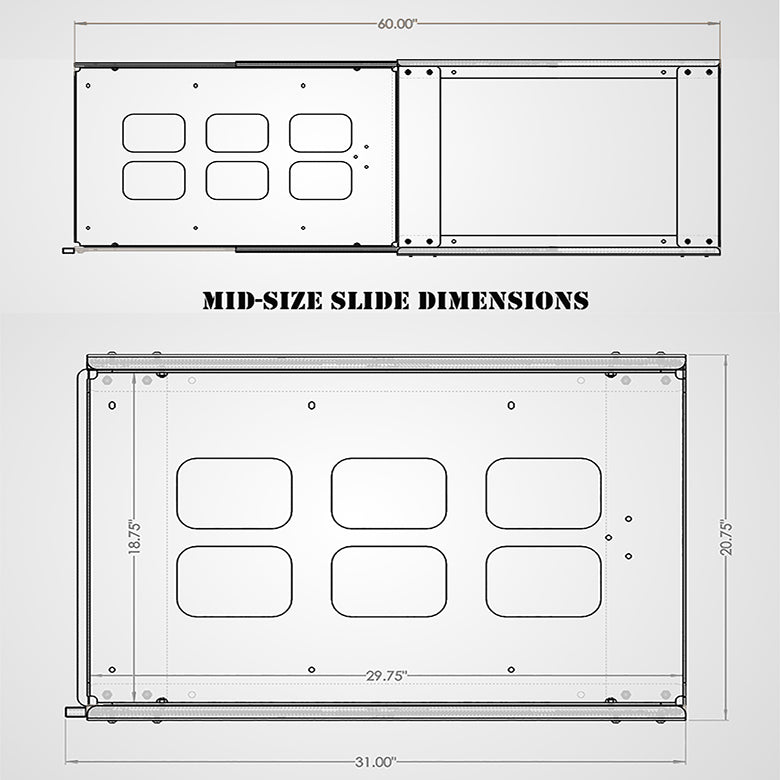

Mid-size Front Pull  Slide:
     Outside dimensions:  21.25" wide x 31"  (Foot print)
     Inside pan dimensions:  18.25" wide x 30"
     Slide weight: 47 pounds.
     Fridge size: 55L to 60L

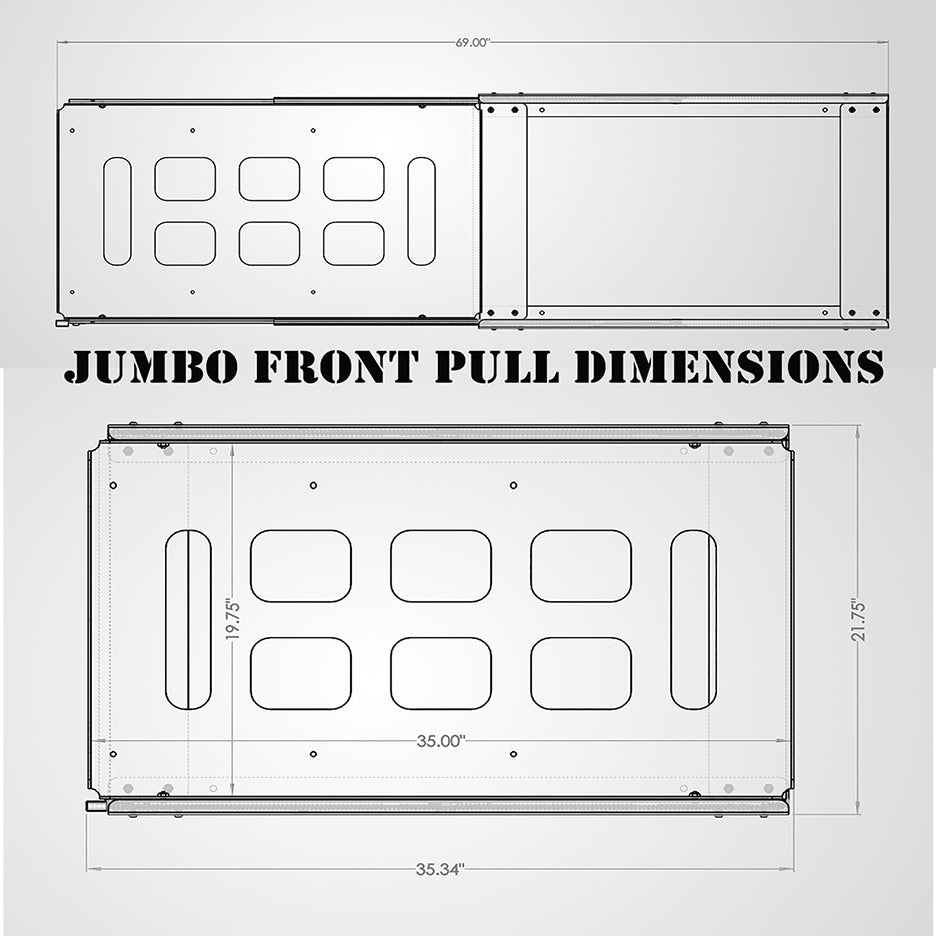

Jumbo Front Pull Slide:
     Outside dimensions:  22" wide x 35-5/8" (Foot print)
     Inside pan dimensions:  20" wide x 35.5"
     Slide weight: 52 pounds.
     Fridge size: 60L to 95L

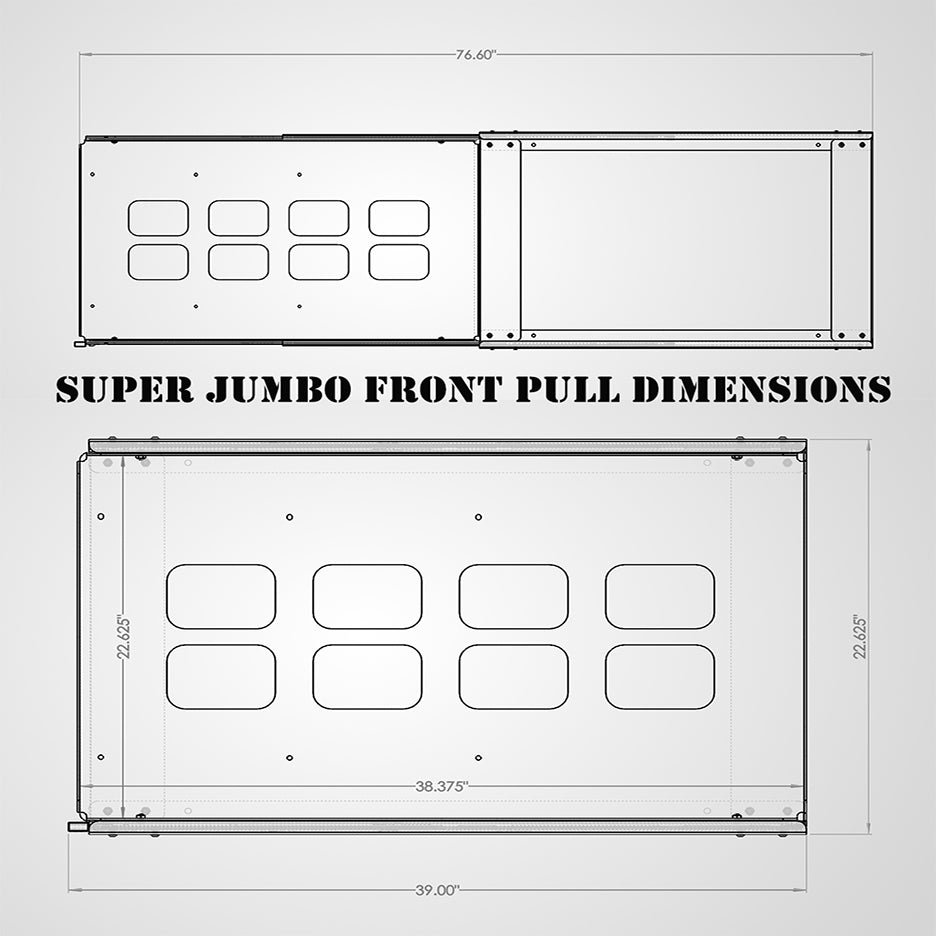

Super Jumbo Front Pull Slide:
     Outside dimensions:  24.5" wide x 38.75" (Foot print)
     Inside pan dimensions:  22-5/8" wide x 38.75" deep
     Slide weight: 60 pounds.
     Fridge size: 95L to 110L

The fridge pan will place the fridge or cargo 1" above the bolt down deck.
See FAQs for additional fridge and slide clearances.

Slides may differ from photos.

Cutting Board is optional, 12 x 18 inches.  Fridge will sit 2.5 inches above the bolt down deck.

 Slides ship from 1 to 5 days after order is placed.
